B59750B0120A070
PTC RESET FUSE 420V RADIAL DISCManufacturer: EPCOS - TDK Electronics
Categories: PTC Resettable Fuses
Quality Control: Learn More

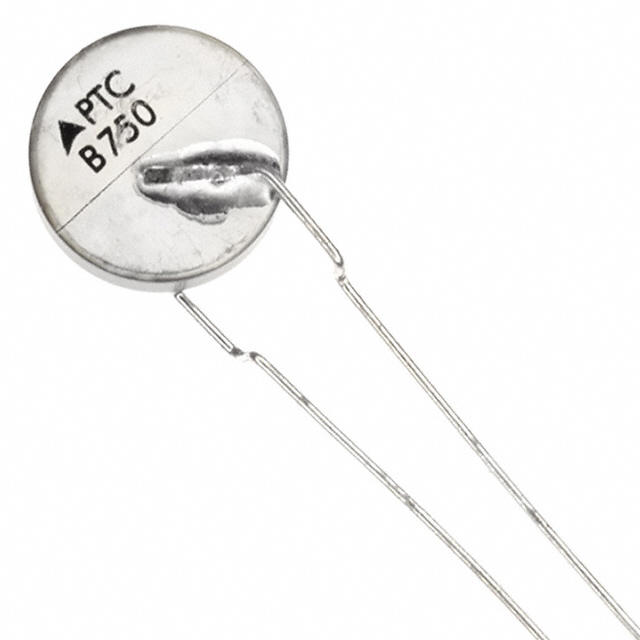

EPCOS - TDK Electronics B59750B0120A070 is a radial disc PTC resettable fuse. This component offers a maximum voltage rating of 420V and a typical resistance of 25 Ohms at 25°C. Designed for through-hole mounting, it features a 5.00mm lead spacing and a disc package with dimensions of 12.50mm diameter and 5.00mm thickness. The fuse has a trip current (It) of 245 mA and a maximum current of 2 A. Its operating temperature range is 0°C to 60°C, with a time to trip of 6 seconds. This component finds application in power supplies, motor controls, and automotive electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.492"" Dia x 0.197"" T (12.50mm x 5.00mm) |
| Mounting Type | Through Hole |
| Type | Ceramic |
| Operating Temperature | 0°C ~ 60°C |
| Lead Spacing | 0.197"" (5.00mm) |
| Current - Trip (It) | 245 mA |
| Voltage - Max | 420V |
| Ratings | - |
| Height - Seated (Max) | 0.650"" (16.50mm) |
| Thickness (Max) | - |
| Current - Max | 2 A |
| Time to Trip | 6 s |
| Resistance - 25°C (Typ) | 25 Ohms |
