EVB-EP5368QI
EVAL BOARD FOR EP5368QIManufacturer: Intel
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

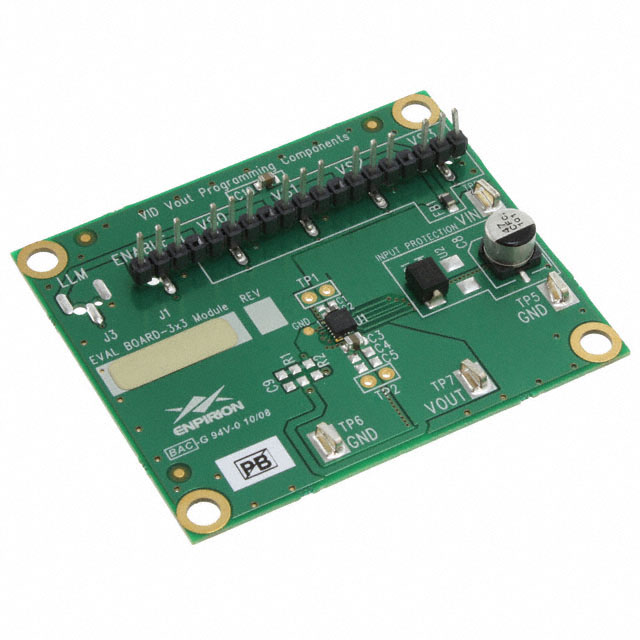

This Intel Enpirion® evaluation board, part number EVB-EP5368QI, facilitates the assessment of the EP5368QI DC/DC step-down converter. Designed for a 2.4V to 5.5V input range, this fully populated board enables testing of the EP5368QI's non-isolated buck regulator topology. The EP5368QI is capable of delivering up to 600mA output current and operates at a high switching frequency of 4MHz, supporting multiple fixed output voltage options including 0.8V, 1.2V, 1.25V, 1.5V, 1.8V, 2.5V, and 3.3V. This evaluation platform is particularly relevant for applications requiring efficient power conversion in compact footprints, such as in portable electronics and telecommunications equipment.
Additional Information
Series: Enpirion®RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Voltage - Output | 0.8V, 1.2V, 1.25V, 1.5V, 1.8V, 2.5V, or 3.3V |
| Voltage - Input | 2.4V ~ 5.5V |
| Current - Output | 600mA |
| Frequency - Switching | 4MHz |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | EP5368QI |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
