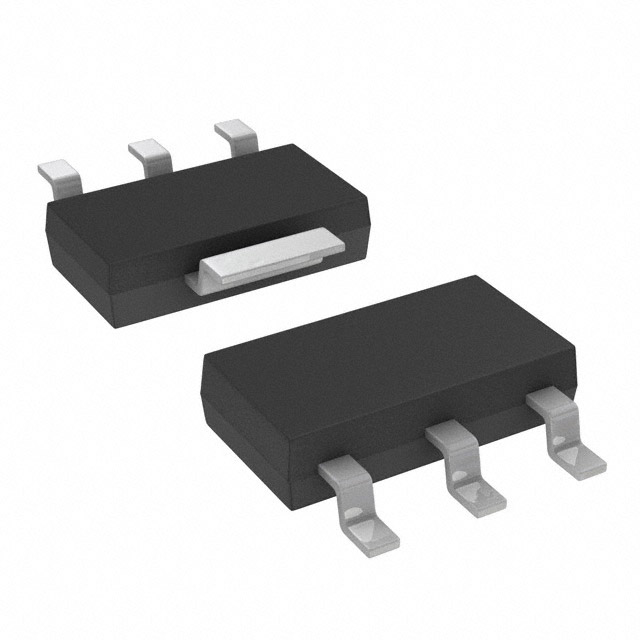

SPX1117M3-L/TR
IC REG LIN POS ADJ 800MA SOT223Manufacturer: MaxLinear, Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA SOT-223-3
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-4, TO-261AA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223-3 |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Control Features | - |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 1.3V @ 800mA |
| Protection Features | Over Current, Over Temperature |
