DLP31DN131ML4L
CMC 120MA 4LN 130 OHM SMDManufacturer: Murata Electronics
Categories: Common Mode Chokes
Quality Control: Learn More

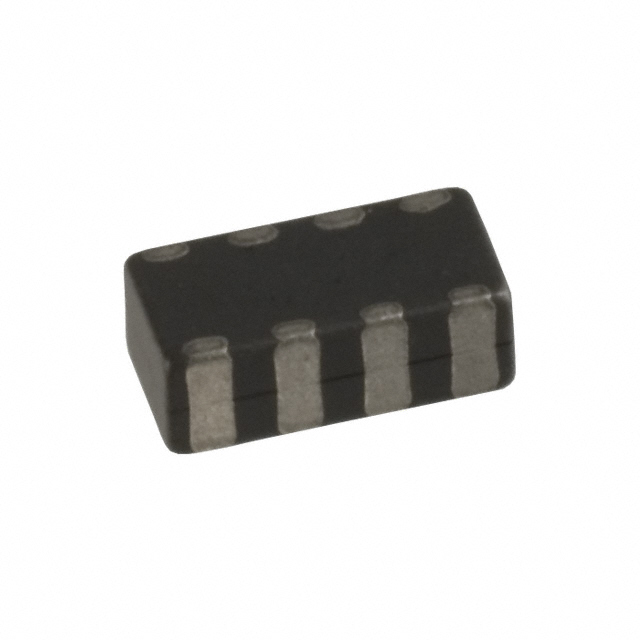

Murata Electronics DLP31 series common mode choke, part number DLP31DN131ML4L, offers 130 Ohms impedance at 100 MHz for four signal lines. This surface mount component, housed in a 1206 (3216 Metric) package, features a 120mA maximum current rating and a 1.1 Ohm maximum DC resistance. Designed for efficient noise suppression, it is suitable for applications in automotive, industrial, and telecommunications sectors. The DLP31DN131ML4L operates across a temperature range of -40°C to 85°C and is supplied on tape and reel. Its dimensions are 3.20mm L x 1.60mm W with a maximum height of 1.30mm.
Additional Information
Series: DLP31RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric), 8 Leads |
| Filter Type | Signal Line |
| Size / Dimension | 0.126"" L x 0.063"" W (3.20mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Number of Lines | 4 |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.051"" (1.30mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 10V |
| Current Rating (Max) | 120mA |
| DC Resistance (DCR) (Max) | 1.1Ohm |
| Impedance @ Frequency | 130 Ohms @ 100 MHz |
