2N6027RL1
PROGRAMMABLE UJT 40V TO92Manufacturer: onsemi
Categories: Programmable Unijunction
Quality Control: Learn More

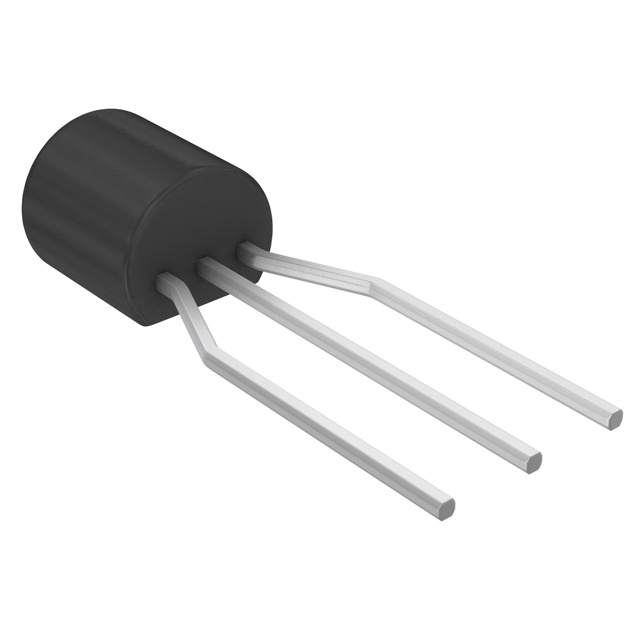

The onsemi 2N6027RL1 is a Programmable Unijunction Transistor (PUT) designed for high-performance applications. This TO-226-3, TO-92-3 (TO-226AA) packaged device features formed leads and is supplied on Tape & Reel (TR). Key specifications include a maximum power dissipation of 300 mW, an offset voltage (Vt) of 1.6 V, and an output voltage of 11V. The 2N6027RL1 exhibits a low gate-to-anode leakage current (Igao) of 10 nA, a peak current of 2 µA, and a valley current (Iv) of 50 µA. This component is widely utilized in industrial control systems, timing circuits, and power supply regulation.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Voltage - Output | 11V |
| Voltage | 40V |
| Current - Peak | 2 µA |
| Voltage - Offset (Vt) | 1.6 V |
| Current - Valley (Iv) | 50 µA |
| Current - Gate to Anode Leakage (Igao) | 10 nA |
| Power Dissipation (Max) | 300 mW |
